Aluminium Super Slim 5mm Housing Touch Switch LED Furniture Cabinet Lamp High Lumen CE Approval

Basic Information
Brand Name: EMOLIT
Certification: CE/ROHS
Model Number: ELB300/458/500/615/800/915/1000PIN
Minimum Order Quantity: 500
Packaging Details: white box or existing packaging from supplier
Delivery Time: 4-8 weeks
Payment Terms: T/T
Detail Information
Housing Material/Color: Aluminium/Silver Voltage: 12V
Rated Watt: 3W/4W/5.5W/6.5W/8.5W/9.5W/10.5W Dimmable: No
CCT: No/Alternative LED Type: 2835SMD
LED QTY: 12/18/24/30/36/42/48 Central Lumen: 189/263/361/427/558/618/676
Color Temperature: 3000K/Alternative 3000K-6500K Beam Angle: 112°
SCDM: <6 IP: IP20
CRI: ≥80 Driver: External
Life Span: 20000hrs Switch: Normal/point Touch
Extended Connection: No Dimension: 300x25x5mm/458x25x5mm/500x25x5mm/615x25x5mm/800x25x5mm/915x25x5mm/1000x25x5mm

Product Description

LED Linear Furniture Lamp ELB-300/458/500/615/800/915/1000PIN

Aluminium Super Slim 5mm Housing Touch Switch LED Furniture Lamp High Lumen CE Approval



Specifications



Product Serial: PIN

Description:

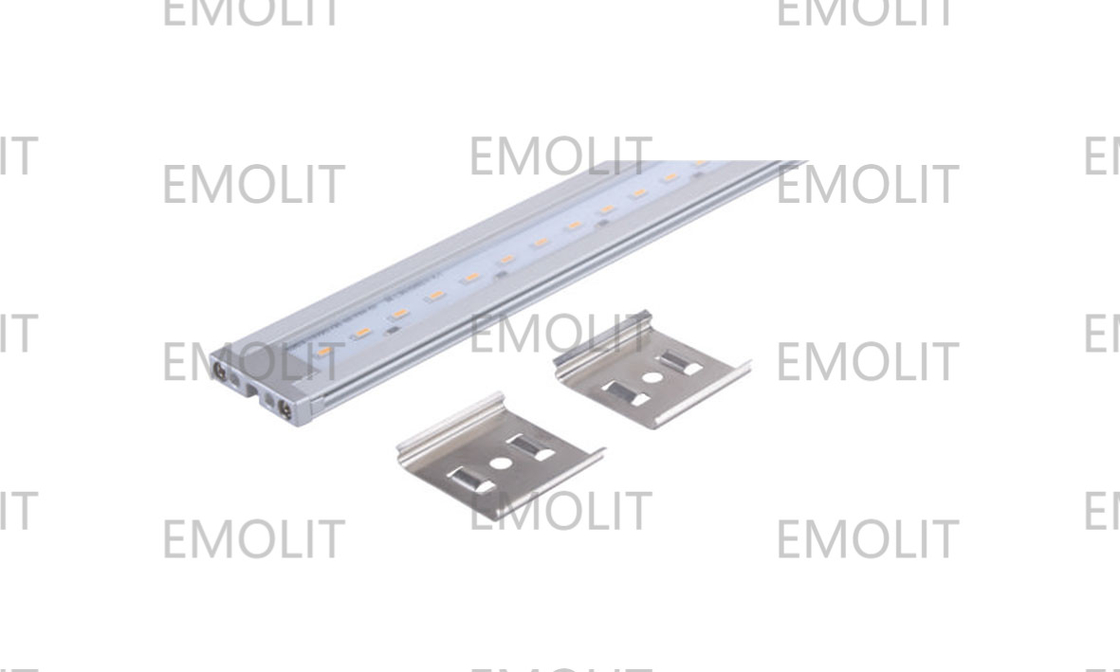

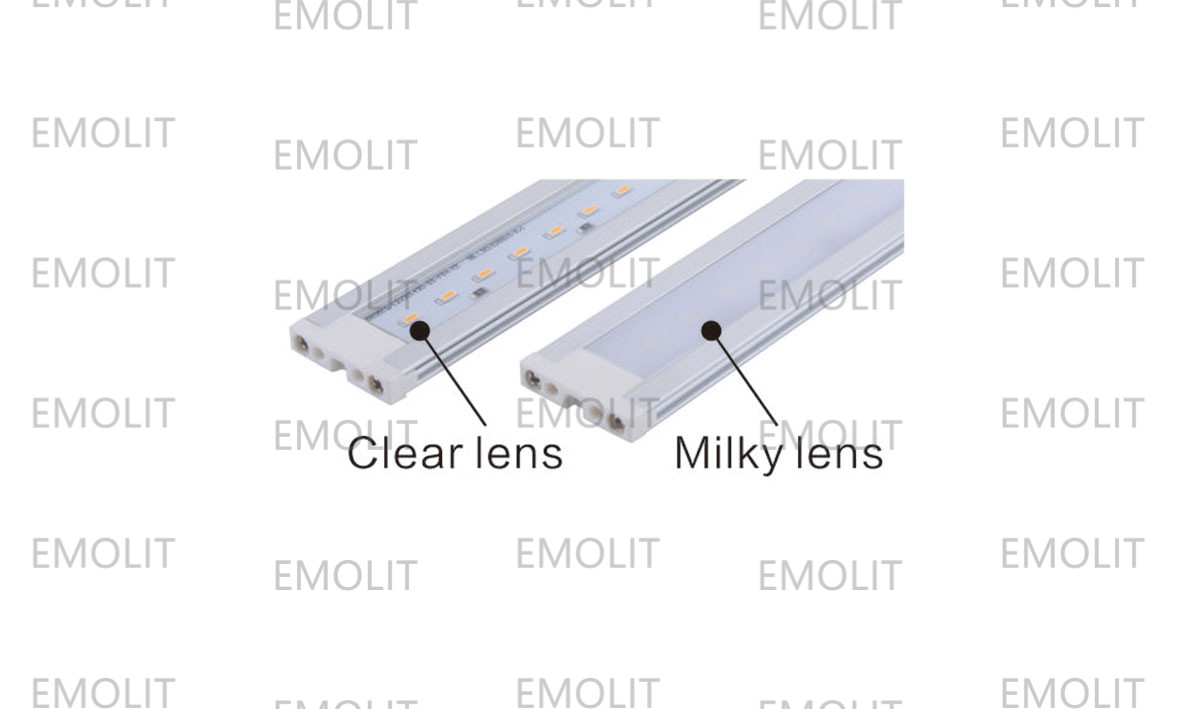

 - High-quality SUPER SLIM strip furniture lamp, Aluminium housing is excellent for heat dissipation, easy installation with high-quality metal clip, milk or clear lens can be alternative, lamp with 1M 2468 24# 3.5DC male plug

 - Length is alternative for clients to choose 189/ 263/ 361/ 427/ 558/ 618/ 676mm, 5mm super slim thin

 - Switch is an alternative for clients to choose a normal switch button, point touch with, or point touch switch with a dimmable function

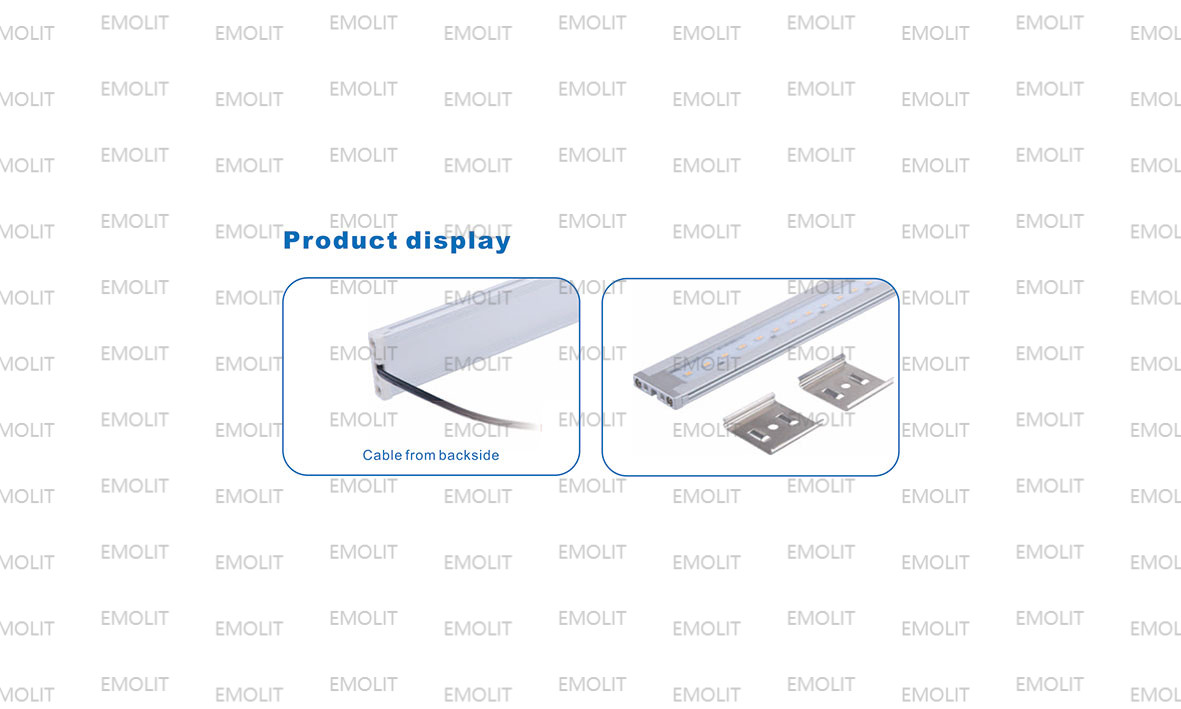

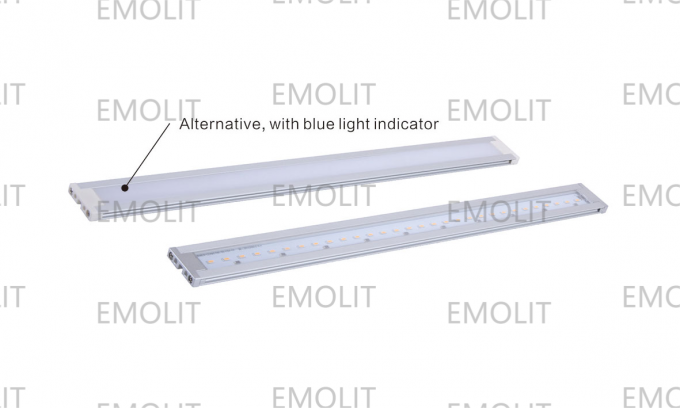

Aluminium Super Slim 5mm Housing Touch Switch LED Furniture Cabinet Lamp High Lumen CE Approval 0



DATA



Housing material/Color Aluminium/Silver Voltage 12V
Rated Watt 3W/ 4W/ 5.5W/ 6.5W/ 8.5W/ 9.5W/ 10.5W Dimmable No
CCT No/Alternative LED type 2835SMD
LED QTY 12/ 18/ 24/ 30/ 36/ 42/ 48 Central Lumen 189/ 263/ 361/ 427/ 558/ 618/ 676
Color temperature 3000K/Alternative 3000K-6500K Beam Angle 112°
SCDM <6 IP IP20
CRI ≥80 Driver external
Life Span 20000hrs Switch normal/point touch
Extended connection No Dimension 300x25x5mm/ 458x25x5mm/ 500x25x5mm/ 615x25x5mm/ 800x25x5mm/ 915x25x5mm/ 1000x25x5mm



Accessories

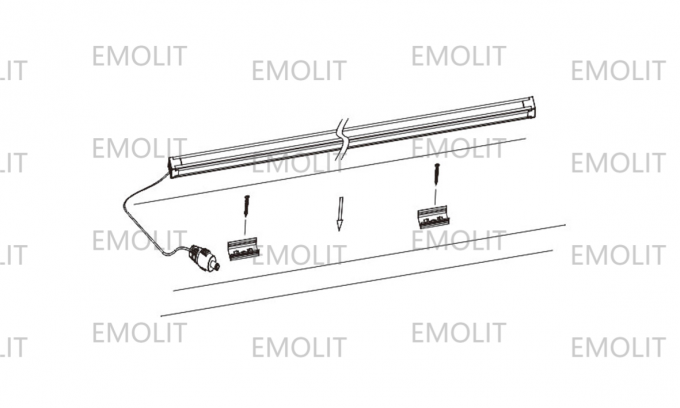

2-3pcs mounting clips+2-3pcs screws(depends on lamp length)

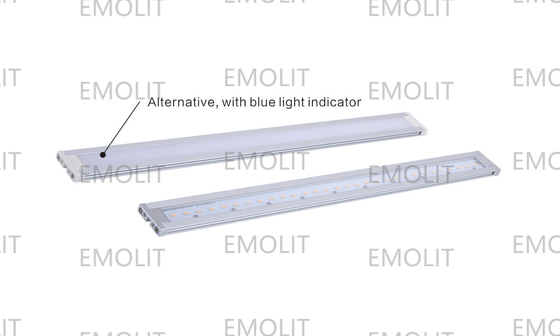

Aluminium Super Slim 5mm Housing Touch Switch LED Furniture Cabinet Lamp High Lumen CE Approval 1

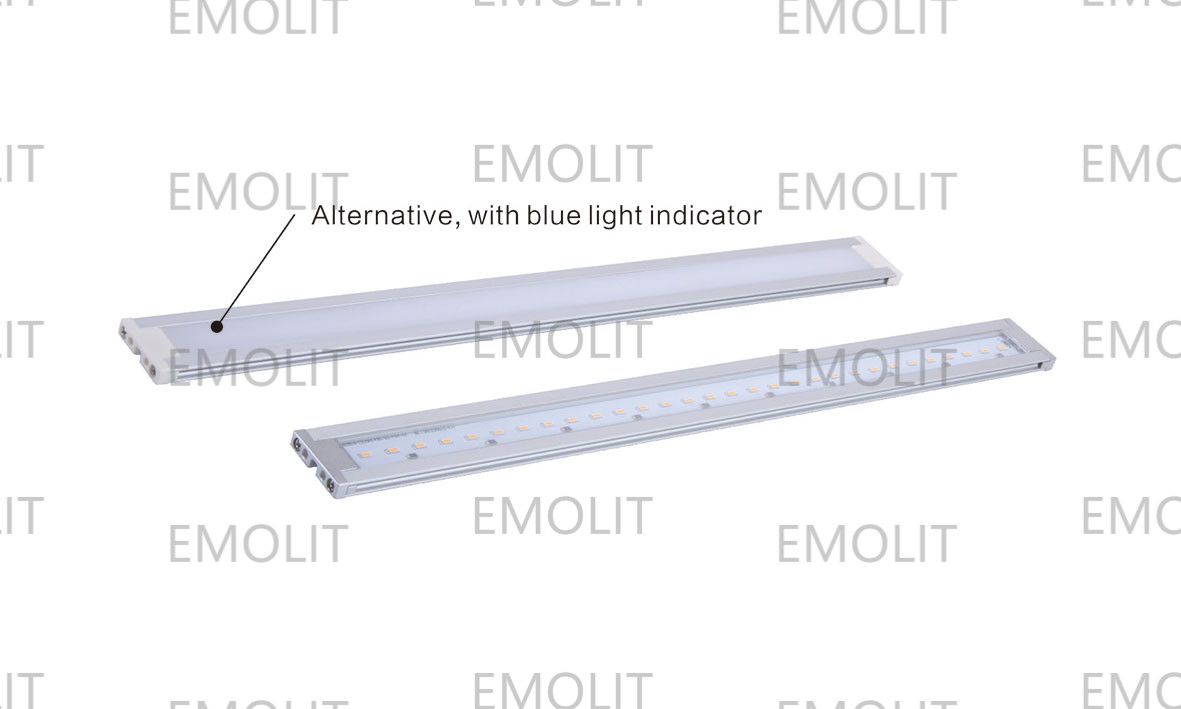

Aluminium Super Slim 5mm Housing Touch Switch LED Furniture Cabinet Lamp High Lumen CE Approval 2





Application

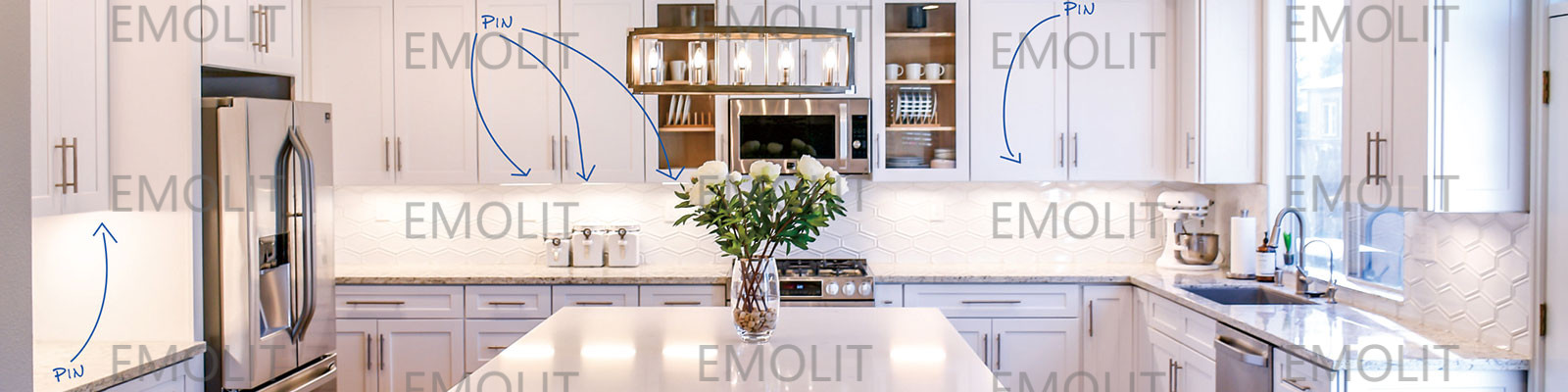

Indoor, Kitchen/Bathroom, Cabinet, Furniture, shelf



Why Choose the EMOLIT team?

1. Regarding Your requests and demands, we will reply within 2 hours as much as possible.

2. Well-trained and experienced staff to answer all your enquires in fluent English.

3. We have our engineering team and manufacturing to manage OEM ODM projects.

4. We can offer lighting solutions based on your project or applications.

5. We are focused on quality and long-term business relationships, we will care about your market and follow rules.



EMOLIT| Professional furniture lighting+Lighting solutions Aluminium Super Slim 5mm Housing Touch Switch LED Furniture Cabinet Lamp High Lumen CE Approval 3
