Flat Aluminium Square Housing CCT LED Furniture Cabinet Lamp CE Approval

Basic Information
Brand Name: EMOLIT
Certification: CE/ROHS
Model Number: ELB014CCTTS
Minimum Order Quantity: 500
Packaging Details: white box or existing packaging from supplier
Delivery Time: 4-8 weeks
Payment Terms: T/T
Detail Information
Housing Material/Color: Aluminium/ Chrome In Sliver Grey Voltage: 12V
Rated Watt: 2.4W Dimmable: No
CCT: No/ Alternative Yes LED Type: 3014SMD
LED QTY: 24 Central Lumen: 140
Color Temperature: 3000K/4000K/6000K Or 3000K-6000K Beam Angle: 120°
SCDM: ≥6 IP: IP20
CRI: ≥80 Driver: External
Life Span: 20000hrs Switch: External With Controller
Lamp Cable: 2000mm 24# Cable Lamp Plug: Black Male Mini Plug

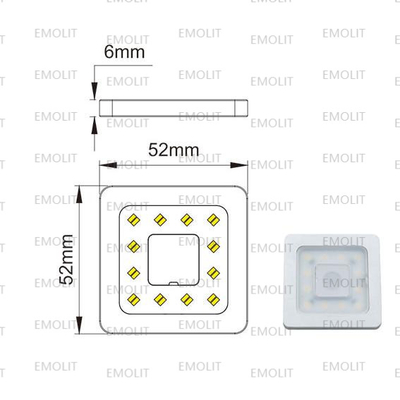

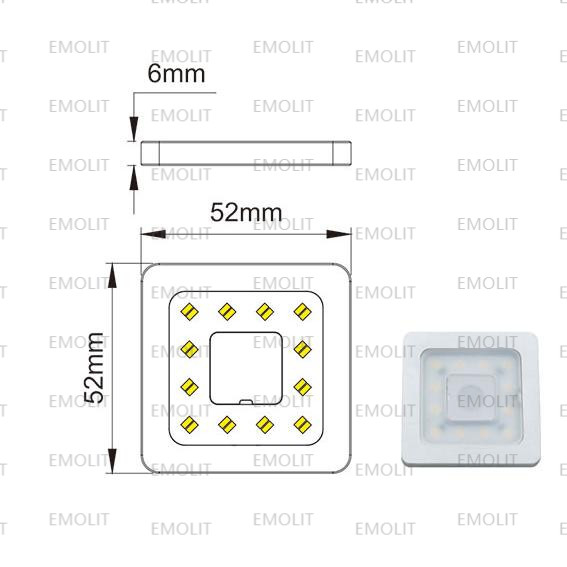

Extended Connection: As Lamps Set With Mini Plug Cable Can Realize Connection Dimension: 52x52x6mm

Product Description

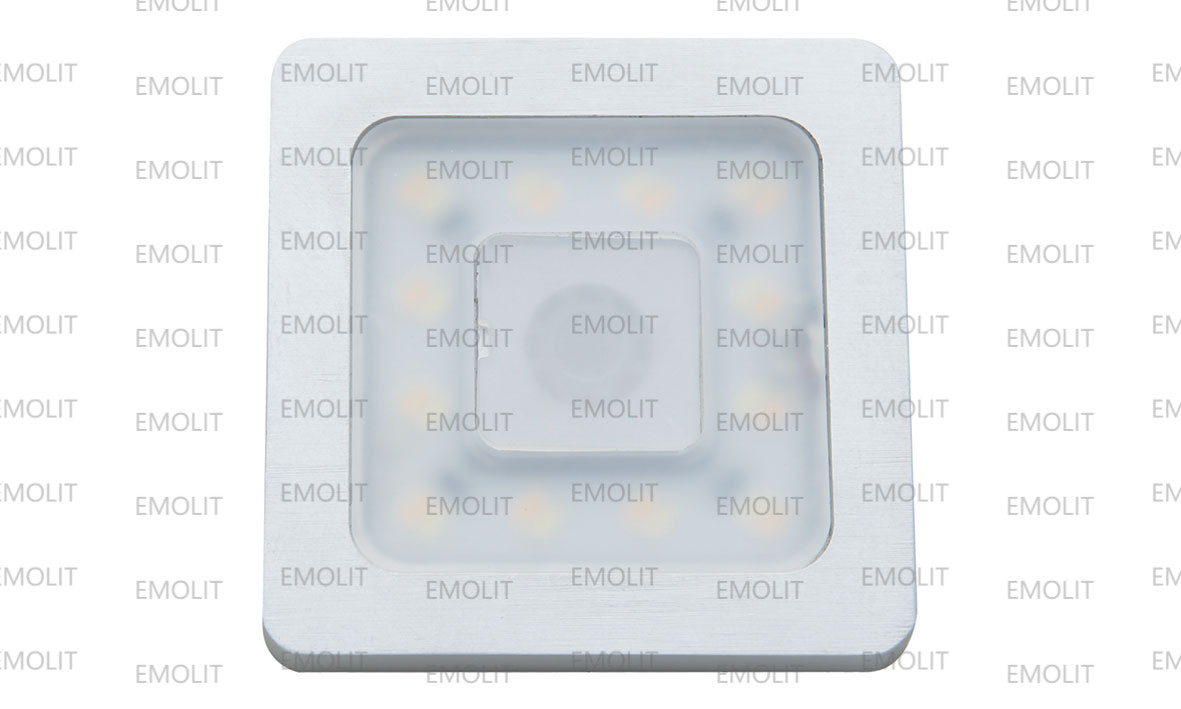

LED Square/Corner Furniture Lamp ELB014CCTTS

Flat Aluminium Square Housing CCT LED Furniture Cabinet Lamp CE Approval



Specifications



Product Serial: TESSA

Description:

- Aluminium housing with a super thin design, 90° square housing match the wall installation or corner installation

- Module Design can flexibly choose with CCT function or not

- Can easily make lamp set with a standard controller from marekt or our own

- Clients can choose flexible with 3 or 6 lamps set that match with set driver and controller

Flat Aluminium Square Housing CCT LED Furniture Cabinet Lamp CE Approval 0

Flat Aluminium Square Housing CCT LED Furniture Cabinet Lamp CE Approval 1



DATA

Housing material/Color Aluminium/ chrome in sliver grey Voltage 12V
Rated Watt 2.4W Dimmable No
CCT No/ Alternative Yes LED type 3014SMD
LED QTY 24 Central Lumen 140
Color temperature 3000K/4000K/6000K or 3000K-6000K Beam Angle 120°
SCDM ≥6 IP IP20
CRI ≥80 Driver external
Life Span 20000hrs Switch external with controller
Lamp cable 2000mm 24# cable Lamp plug black black male mini plug
Extended connections as lamps set with mini-plug cable can realize connection Dimension 52x52x6mm





Accessories



Screw:Ф3x16mmx1+Screw cover:Ф17.8x3.5mmx1


Application

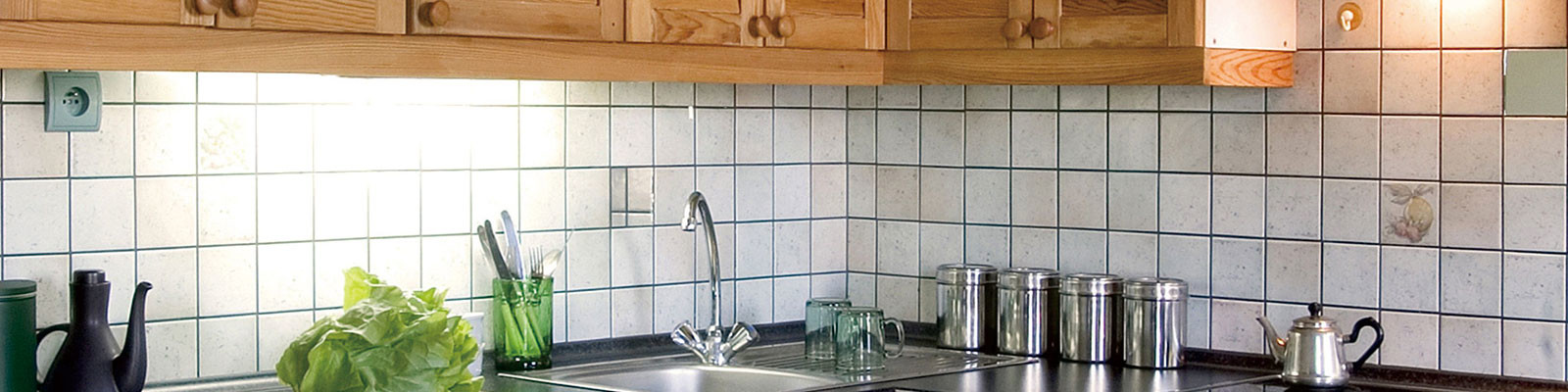

Indoor, Kitchen/Bathroom, Cabinet, Furniture, shelf
